Description

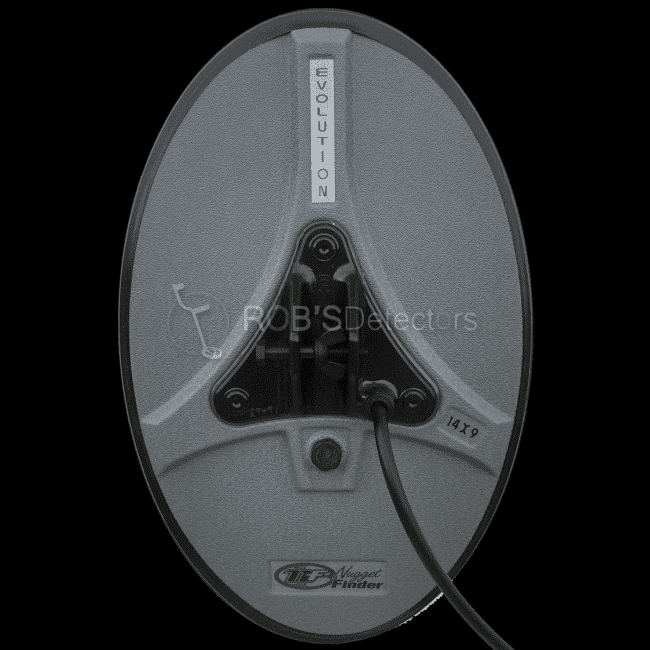

Nugget Finder 14×9′ Elliptical Mono Evolution Searchcoil (includes skiplate and hardware)
The new Nugget Finder Evolution 14×9” Elliptical Monoloop is one of the most versatile coils ever built! Because of its blade-like shape, this coil is easy to maneuver around rocks and heavy brush, plus it is incredibly sensitive to even the tiniest of nuggets! Both ends of the coil are “hot” and can be used for easy pin-pointing in the hole. A must have coil for any prospector’s arsenal!
Evolution Technology: In traditional bundle wound Litz coils, the individual turns of Litz wire are grouped together to form what essentially looks like a rope of wire. The Evolution Coils use the same Litz wire; however the individual turns of wire are laid side by side to form a wide flat strap of wire. This method of winding is called a Flat or Spiral winding. Flat winding reduces the capacitance between the wires and produces a much more efficient coil. It also dramatically increases the surface area of the winding, thereby producing a coil with both improved depth and sensitivity across all target sizes.
This method of flat winding has been used for many years in custom made and privately built coils. It is considerably more difficult to produce this type of winding in large quantities without sacrificing quality. Nugget Finder has developed a unique method of producing a flat winding which ensures that reliability and quality are not sacrificed. Every Evolution Coil winding is individually wound on a former, then clamped under pressure between two layers of high density Divinycell Foam. While clamped, an expanding foam is injected between the layers permanently infusing the winding into the foam. When combined with our unique bonded ABS and Polycarbonate component housing, the result is the highest quality search coil on the market.
- Improved Depth & Sensitivity over the Advantage Series
- Improved Stability
- Water-proof to 1 Meter
- Resin Encased Spiral Wound Litz Winding
- Unique Solid Housing – Strong, Rigid & Lightweight
- New Smooth Surface Skid Plate with tapered edges for longer life & quieter operation
- Polycarbonate Shaft Mount
- Gold Plated Plug
- Compatible with Minelab GPX, GP & SD series gold detectors
- 3-Year Warranty
** Free Shipping in the US
Questions about this new searchcoil, please call or email us at – [email protected]
Additional information
| MPN | NPN166 |
|---|---|
| Brand | Nugget Finder |
1 review for Nugget Finder 14×9′ Elliptical Solid Evolution Searchcoil
You must be logged in to post a review.
garikfox (verified owner) –
Yay! my Nugget Finder! I haven’t opened it yet but as we all know these are the best coils 🙂
